Aquaculture Fish Farm Waterproof Geomembrane Pond Liner HDPE High Density for Landfill Dam Soil Protection
Geomembrane Pond Liner Description
Manufactured to GRI GM13 standards, this low-permeability synthetic geomembrane pond liner utilizes premium virgin polyethylene resin enhanced with carbon black, antioxidants, UV stabilizers, and anti-aging compounds. Engineered for exposed applications, geomembrane pond liner's smooth surface delivers exceptional ultraviolet resistance and impermeability. Geomembrane pond liner's primary applications include: solid waste landfills, mining operations, waste treatment facilities, aquaculture containment, water reservoirs, and hydraulic infrastructure.
Geomembrane Pond Liner Technical Parameter
ASTM Standard geomembrane pond liner
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Characteristics:
Superior flexibility
Extreme temperature tolerance (-70°C to 110°C)
Chemical corrosion & aging resistance
Exceptional environmental stress cracking (ESC) resistance
High tensile strength with elongation capacity
Main Features:
UV-resistant
Impermeable barrier
Reliable isolation
High tear-resistant
Puncture-proof
HDPE Geomembrane Application:

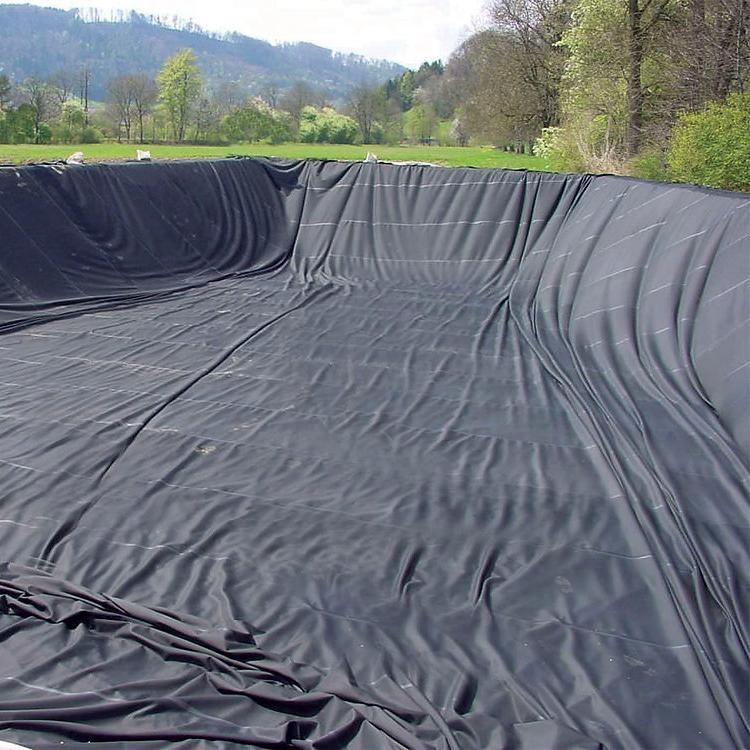

(1) Aquaculture:
Utilizing the geomembrane pond liner's anti-seepage properties, our geomembrane pond liner serves as:
Fish farm
Shrimp containment
Tank sealing
Recirculating aquaculture
(2) Landfill:
As the industry-standard geomembrane pond liner solution:
Base geomembrane pond liner for landfill bottoms
Capping geomembrane pond liner closure systems
Leachate collection geomembrane pond liner
Regulation pond geomembrane pond liner
(3) Water Treatment Systems:
Critical geomembrane pond liner applications include:
Power plant cooling geomembrane pond liner
Wastewater treatment geomembrane pond liner
Equalization basin geomembrane pond liner
Potable water geomembrane pond liner reservoirs
(4) Mining:
Heavy-duty geomembrane pond liner installations:
Heap leach pad
Tailings storage
Process solution
Sediment control
Acid rock drainage containment
